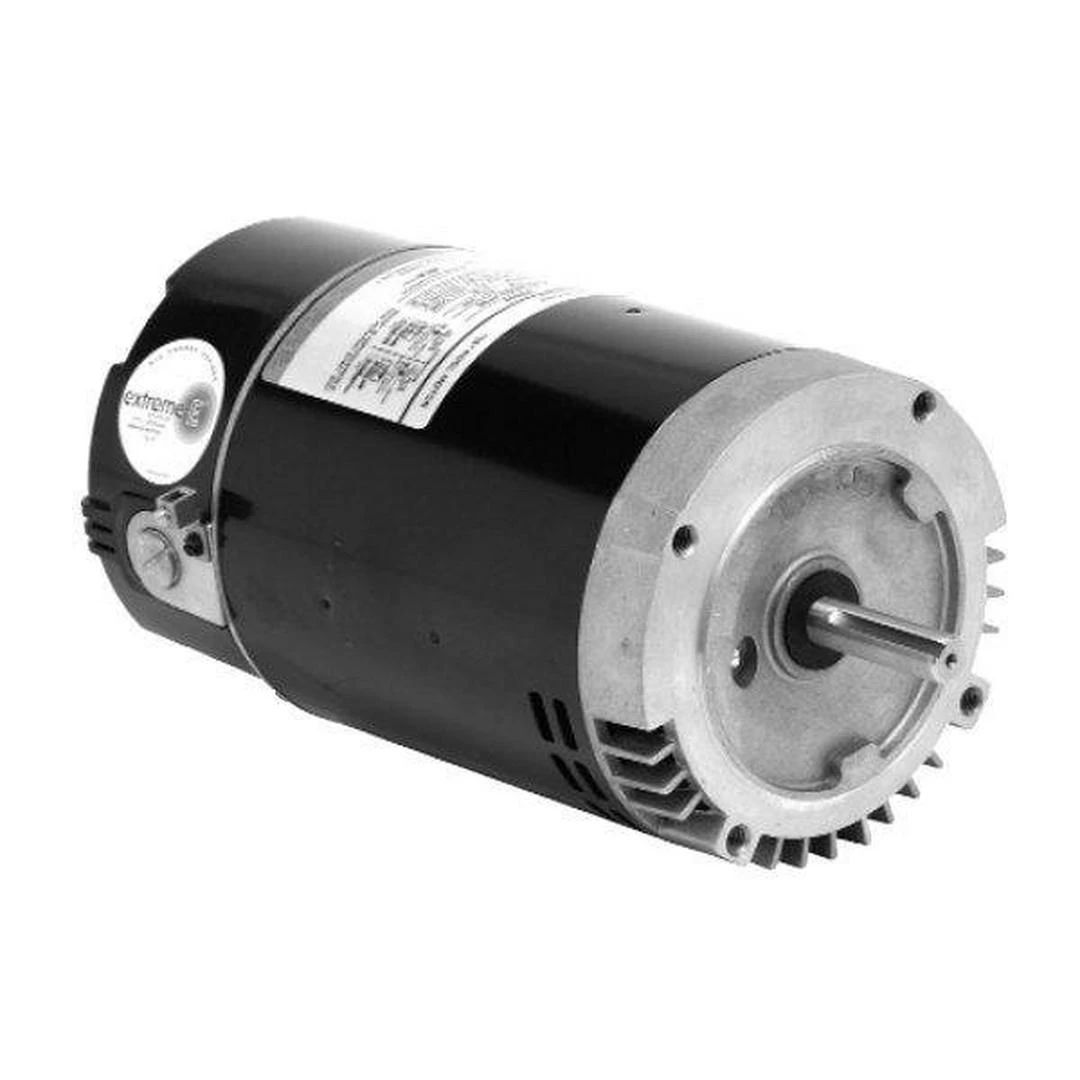

U.S. Motors – Emerson 56J C-Flange Single Speed 3/4HP Full Rated Pool And Spa Motor

Original price was: $249.99.Current price is: $95.99.

SKU: BGVZB 38626 Category: Spa Parts & Equipment

Safe Transactions, Always
Excellent customer service online in a timely manner
Secure Shopping with Safe Payments
100% High Quality Guarantee

Description
Reviews (0)

The Emerson 56 C-Flange Motor is drip-proof to prevent water damage, built with ventilation openings.

Shaft Threads – 7/16-20 UNF-2A
50 Degree C Ambient
1081 Design
Continuous Duty
Class B Insulated
303 Stainless Steel Shaft
Thermally Protected
Service Factor: 1.5
RPM: 3450
Shaft: Threaded
6.0/12.0A 115V/230V
Length without Shaft: 10.77

For precision and advanced technology, the Emerson 56 C-Flange Motor for pools and spas is engineered with a two-compartment design, sporting triple bearing protection and sealed ball bearings. With a switchless design, the Emerson 56 C-Flange Motor is drip proof to prevent water damage, built with ventilation openings. It requires little maintenance and has been designed for dependability and a long lifespan. The Emerson 56 C-Flange Motor consistently operates at one speed, working at 1/2″P and 115/230V.

Voltage:	120V / 240V
Pool Type:	In Ground
Voltage:	115V / 230V
Flange Type:	J Flange
Horsepower:	3/4 HP
Speed Settings:	Single Speed
Service Factor:	1.50 – 1.75
Rating Type:	Full-Rated
Product Type:	Pool Motor
Motor Frame:	56 Frame
Energy Efficiency:	Standard
Manufacturer:	U.S. Motors Emerson
Pump Speed:	Single
Service Factor:	1.5
Total Horsepower:	1.13 THP
